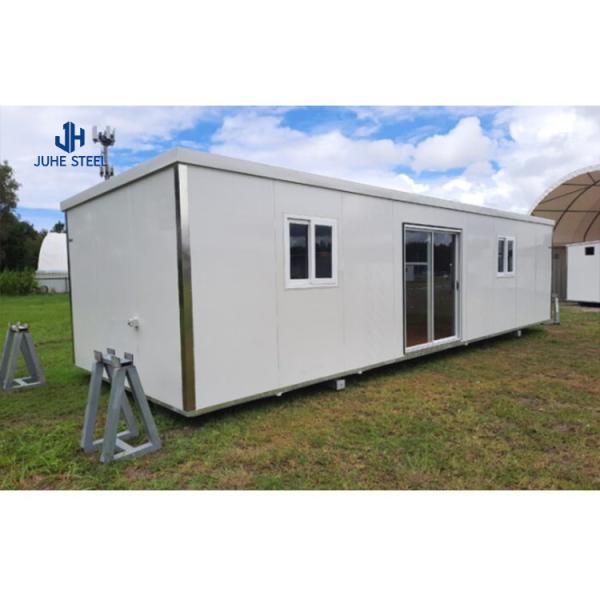

Steel Chasis 18mm MGO board 15mm Vinyl flooring 20ft 40ft Pre Manufactured Container House

Name: Steel Chasis 18mm MGO board 15mm Vinyl flooring 20ft 40ft Pre Manufactured Container House
Brand: JUHE
Price: 80.00 USD

Quality Steel Chasis 18mm MGO board 15mm Vinyl flooring 20ft 40ft Pre Manufactured Container House wholesale

Standard : AiSi

Grade : Q235/Q355B

Place of Origin : Shandong, China

Brand Name : JUHE

Type : Light

Application : Steel structure container house

Tolerance : ±1%

Processing Service : Bending, Welding, Decoiling, Cutting, Punching

Delivery Time : 8-14 days

Product Type : Container Houses

Design Style : Modern

Name : expandable prefab container house

Open Size : 6390*5850*2530

Closed Size : 2250*5850*2530

Layout : One ~ Four Bedrooms

Wall : 50/75mm EPS sandwich panel/Rock wool

Roof : 50/75mm EPS sandwich panel/Rock wool

Window : PVC Sliding window or aluminum alloy

Floor : Steel Chasis+18mm MGO board+15mm Vinyl flooring

Packaging Details : standard export package to protect the goods or customer's requirement

Port : qingdao tianjin

Supply Ability : 20000 Ton/Tons per Month

MOQ : 99 square meters

Price : $80.00/square meters 99-199 square meters

Contact Now

Products Description

low cost high quality 20ft 40ft Luxury Pre Manufactured Container House

Steel Chasis 18mm MGO board 15mm Vinyl flooring 20ft 40ft Pre Manufactured Container House

This kind of expandable house was designed in 2009.One of our Australian customers wanted a small house for family living.He told us that the labor cost in Australia was very high,and he had no experience in installing buildings.So we designed this house for him. It is about 37 sqm and it takes two hours for 3 persons to complete the installation.It includes one parents' bedroom and one child's bedroom. The toilet,paper holder,shower,sink,mirror,towel rack are all installed in our factory. Customers only need to connect supply and drainage pipes locally. The kitchen is open,and we can customize the kitchen cabinets,.We can also provide range hood, oven, dishwasher and such electrical appliances. There is enough area in living room to put down a table, sofa and tea table.

item	Movable House
Outside size	580024602510mm
Inside size	564023202380mm
Floding Size	58002460365mm
Self-weight	1100kg
Floor	Cement mixed floor 15mm
Electrical system	Electrical wiring shall be installed in strict accordance with moisture-proof specifications, and all electrical products shall comply with CE certification. Connect the circuit according to the circuit engineering specification Inside: incoming line 2.5 ²National standard flexible copper wire, 1 20A circuit breaker, 1 three-hole air conditioning socket, 2.5 socket incoming line ²，Five-hole single socket 1 One five-hole socket and one LED lamp
Anti-theft door	High quality anti-theft door (warm white) size: 860mm * 1980mm
Window	925 * 930 single glass sliding window plastic steel window, glass thickness 4mm (warm white)
Fire Rating	A Grade
Seismic grade	8 grade
Wind resistance grade	10 grade

1.Light and reliable structure:The steel structure is strong and firm, wind resistance capacity>220-280km / h, seismic resistance capacity >grade .8.Completed galvanized steel frame, anti-rust and especially for seaside and high humidity area;

2.Time and Labor saving and Easy assembly:Two skilled workers can finish assembling one standard unit within 3 hours;

3.Flexible combination:Multiple modular buildings can be easily combined horizontally and vertically;

4.Wide applications:Can be used as warehouse, home, villa, toilet, shower, shop, hotel, camp, workshop, office, hospital etc;

5.Cost-effective and Easy transportation way:8 units / 40’HQ loading;

6.High mobility:Completed lifting and easy to move from one site to another site.

Details Images

Front View of Expandable Cabin

Entrance door options:
1. Big aluminum frame glass sliding door2. White color steel single door
3. Security door
4. Side sliding door

Window Option
1. White Color PVC sliding window
2. Black or brown color aluminum thermal window

Side View of Foldable Container

All the walls are made of 50mm thick, or 75mm thick EPS sandwich panels, which is good heat insulation proformance.

The side of expandable container house has two windows for standard model. But you like to open a door here, or to add extra
exterior wall cladding panels are available.Some client will prefer to paint the surface by themself in different colors

Indoor View

Bedroom: One, two, three, or four Kitchen: open or closed Living room: open for you to put inside with furnitures Kitchen cabinet is included in our quotation as standard equipment. Other facilities is optional.

Bathroom View

Equipment included and pre-assembled: 1 One luxury shower room 2 One Wash basin with cabinet 3 One toilet 4 Water supply and drawinage pipe are all installed in my facotry. 5 Electricity parts such as cable wire, socket, switch, distributor box are all installed in my factory.

40 feet expandable container house with bathroom It is about 37 sqm and it takes one day for 6 persons to complete the installation. It includes two bedrooms. Modular House design, easy to assemble. 3 in 1 folding 20 ft expandable container house's bathroom equipped with toilet, shower room, wash basin with mirror and cabinet, which are all installaed in my facotry. Customers only need to connect supply and drainage pipe locally. The kitchen of australia standard expandable container house is open, and equipped with L type cabinet, and living room. Range hood, oven, dishwasher and other fittings are optional. In the living room, enough space for you to put down a table, sofa, tea table etc. Remarks: there is also 40ft expandable container house, which is 74sqm, and can own 1~4 bedrooms. 3 in 1 20ft and 40 ft Expandable Container Home (ECH) Specification: Floor is used cold rolled steel profile to post the house; floor, wall and roof are all using eps or rockwool sandwich panel/insulated material to ensure the house heat insulated program; wall panel usd steel sheet (zinc sheet) as pretect cover 20 ft & 40 ft Expandable Container House Floor Plan Options 20 feet expandable container house can be devided into different rooms inside, according to clients requirement. Such as Open hall without any parititons, which can be used as a shower room, storage, classrooms etc; One big bedroom or two bedrooms, one bathroom, and one living room.

Steel Structure

Shandong Juhe Steel Co. LTD

_{Was founded in 2013. After more than 10 years of steady development, It has now become a high-tech, diversified, export-oriented international private enterprise integrating research and development, design, production, installation and construction and service. manufacture enterprises in China, also has waterproof anti-corrosion insulation engineering, construction curtain wall engineering, building engineering construction general contracting qualification, be included in the construction industry modernization production base in Shandong province. The core competitiveness of the company comes from the unremitting pursuit of technological breakthroughs. Now, there are more than 100 senior technical personnel of various kinds, and many universities and scientific research institutions to establish cooperative relations. With the help of internal and external intellectual resources, relying on steel structure, we continue to innovate in various aspects and achieve new breakthroughs.}

Construction process

Construction management

We act as advocates for our clients, performing due diligence in the pre-construction phase, minimizing risks for our clients and starting projects off.

Program management

From project accounting to overseeing the team, from maintaining schedules to bidding to outside vendors, we offer our industry knowledge.

General contracting

When overseeing the bidding process and executing the project it is our role to drive value, both in terms of our initial bid and by controlling the project.

Design and build

Design and build is all about working with efficiencies created within the design phase, thereby minimizing on-site labor and executing seamlessly while controlling costs.

Customer Album

Free Shipping all year round

If you become our agent and buy 150 units, we are going to provide 1 order, 15 units free shipping for you.

VIP Rewards

Every time you buy our container house, you will become our agent, if you buy more than 150 units, you can get 2% refund.

Dedicated L.E.G.O Experts

Our company always finding a new solution for our client, we invest a lot to develop a new product. Our L.E.G.O container has been upgraded from 1st generation to 5th generation. Make your house more perfect, and more easily to build.

Order missing pieces

If you become our VIP agent and need any replacement materials we can give you free. All you need to take care of is the delivery cost.

Cold formed Welded Steel Frame

1；Shot blasting+Paited, anti-rust, and longterm lasting 2 ；Insulation: Different types of sandwich panel such as eps, rockwool, glasswool, pu sandwich panel 3 ；Window: PVC window or Aluminum Frame window 4； Front Door: Steel door, sliding glass door, single door, eps sandwich panel door etc 5； Inside Door: Titanium Magniusm Ally Door, or MDF wood door 6； Ceiling: Steel ceiling 7； Floor: Waterproof MGO board+PVC flooring 8； Bathroom equipment: 1 shower room, 1 toilet, and 1 washbasin with mirror and cabine 9； Kitchen fitting: cabinet 10； Eletrictity: according to different country's standard 11； Plumbing: waste pipe and water supply pie 12 ；Loading: one 40HQ can load two sets of 20 feet expandable container house

FAQ

low cost high quality 20ft 40ft Luxury Pre Manufactured Container House

1.Q:Are you the Factory or Trading Company? A: We are the factory with more than 5 production lines which is located in Guangzhou for prefab house and portable toilets,Shanghai and Foshan for container houses and Dongguan for steel structure.

2. Q: How about your delivery time? A: Normally, the delivery time is as follows: Prefab house: 7-15days, Container house: 10-15days, Steel structure: 30-35days,Portable Toilet: 5-10days.

3. Q: What about the Month Capacity? A: Prefab house: 100,000m2, Container house: 1000units, Steel structure: 2000tons, Portable Toilet: 2000units.

4. Q: What's the minimum order? A: Prefab house: 100m2, Container house: 3units, Steel structure: 200m2, Portable Toilet:5units.

5. Q: What's you payment terms? A: T/T;Cash;LC.For standard products:30% deposit before delievery,70% balance before delivery.Customized Products:Depands on the design.

6. Q: What kind of technical drawings could you provide? A: We could provide three-view drawing, 3D picture, blueprint, foundation, plumbing, electrical, communication, fire alarm, installation, furniture and so on.

7. Q: What is the lifespan and warranty period? A: The lifespan for Prefab house is 10 to 15years, Container house is 15-20years, Steel structure is 30-50years and Villa is 50-90years. The warranty period for all the house is 12months from the delivery.

8. Q: Could you supply the service of installation? A: Yes, we have experienced supervisors who could go to guide the installation at any time. Meanwhile, we have skilled installation team who could finish some turn-key projects.
